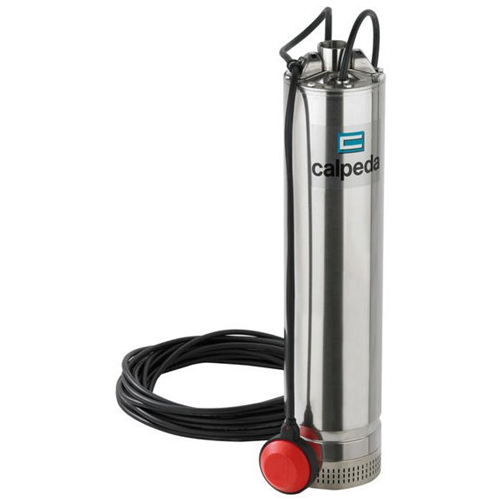

Unterwasserpumpe 5” CALPEDA MPSM Sauberes Wasser MPS306m CG 0,9kW 1,2Hp 230V

Beschreibung

MPS Multi Stage Submersible Clean Water Pumps

CONSTRUCTION

Close coupled multi-stage submersible pumps.
External jacket in stainless steel AISI 304 and stages Noryl.
MPSM with built-in capacitor, accessible through the delivery casing.
Hydraulics located below the motor with the motor cooled by the pumped fluid. Safe operation is possible with the motor only partially submerged.
Double shaft seal with oil chamber.
The suction strainer prevents the entrance of solids with diameter bigger than 2 mm.

APPLICATIONS

For water supply from wells, tanks or reservoirs.
For domestic, civil and industrial applications, for garden use, irrigation and rain water harvesting systems.

OPERATING CONDITIONS

Water temperature up to 35 °C.
Minimum internal diameter of well: 140 mm.
Minimum immersion depth: 100 mm.
Maximum immersion depth: 20 m (with suitable cable length).
Continuous duty.

MOTOR

2-pole induction motor, 50 Hz (n ≈ 2900 1/min).
MPS : three-phase 230 V ± 10% three-phase 400 V ± 10%.
Cable: H07RN8-F, length 15 m, without plug.
MPSM: single-phase 230 V ± 10%, with thermal protector.
Incorporated capacitor.
Float switch MPSM.. CG
Cable: H07RN8-F, length 15 m, with plug CEI-UNEL 47166.
Insulation class F.
Protection IP 68 (for continuous immersion).
Double impregnation humidity-proof dry winding.
Constructed in accordance with EN 60335-2-41.

SPECIAL FEATURES ON REQUEST

Other voltages.
Frequency 60 Hz
Cable length 20 m.
Motor suitable operation with frequency converter.
