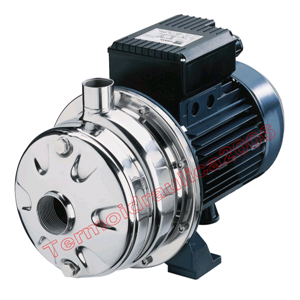

EBARA Dual Impeller Centrifugal Electric Pump 2CDX/I 200/40 IE3 4Hp 3kW 3x400V 50Hz AISI 304 Stainless Steel Temp Max 60°C

Beschreibung

2CDX-2CDXL EBARA

Surface
Dual Impeller Centrifugal Electric Pumps in AISI 304 and in AISI 316

APPLICATIONS

Domestic pressure boosting
Small-scale garden irrigation
Washing
Treating water
Cooling towers
Moving clean water in general

TECHNICAL DETAILS

Strong structure
Small dimensions

PUMP TECHNICAL DATA

Maximum working pressure: 8 bar
Maximum temperature of the liquid:
-5°C ÷ +60°C for standard and E version
-5°C ÷ +110° for H-HS-HW-HSW version
G1½ suction connection for 2CDX 200, G1¼; for the rest of the range
G1 discharge connection

MOTOR TECHNICAL DATA

High efficiency motors IE2 starting from 0,75kW
Self-ventilated 2 pole asynchronous motor
Class of insulation F
IP55 Protection degree
230V ± 10%, 50Hz single phase voltage
230/400V ± 10%, 50Hz three phase voltage
Permanent capacitor inserted and thermo-amperometric protection with automatic rearm incorporated for the single phase motor
Protection under user's responsibility for the three phase version

MATERIALS

Version AISI304

Pump casing, impeller, shaft, diffuser and seal housing disc in EN 1.4301 (AISI 304)

Version (L) AISI316

Pump casing, impeller, shaft, diffuser and seal housing disc in AISI 316

Aluminium motor bracket (up to 1.5 kW included), in cast iron (2.2 kW and above)

MECHANICAL SEAL in:

Ceramic/Carbon/NBR (standard)
Ceramic/Carbon/FPM (H version )
SiC/SiC/FPM (HS version)
Tungsten carbide/Tungsten carbide/FPM (HW version)
SiC/Tungsten carbide/FPM (HSW version)
Ceramic/Graphite/EPDM (E version)
Tungsten carbide/Special carbon/EPDM (U3CEGG version)
