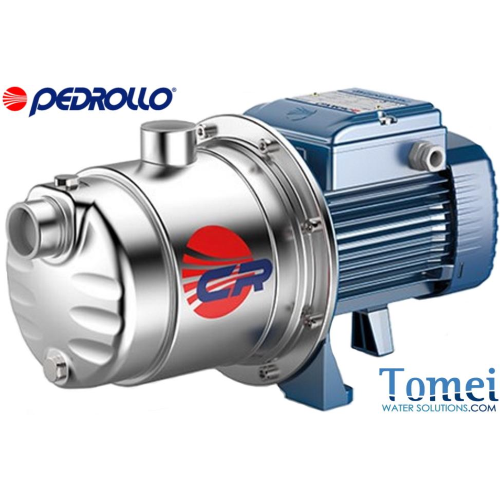

Booster Pump Water centrifugal 3CR 80 PEDROLLO Stainless Steel for water 0,45 Kw

Price:	€272,57 VAT included (22%)
Freight costs:	FreeDetails
Availability:	Available Handling time: 2 days
Quantity:	Booster Pump Water centrifugal 3CR 80 PEDROLLO Stainless Steel for water 0,45 Kw How many PZ do you want to add?

Services

Print Ask for information

Users feedback

Description

Technical details

Model	3CR 80
Power	Three-phase
kW	0,45
HP	0,6
Flow Rate Q [l/min]	5 ÷ 80
Head H [m]	38 ÷ 5
Outlet	1"
Pump body	Stainless Steel AISI 304
Impeller	Stainless Steel AISI 304

2-5CR Multi-stage centrifugal pumps Description

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their quietness, these pumps are widely used in domestic applications such as the distribution of water in combination with small and medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
Installation needs to be undertaken in well ventilated closed areas or anyway protected from bad weather.

Features

Liquid type: Clean Water
Uses: domestic, civil
Applications: irrigation pumps, water supply systems, pressure systems
typology: surface
Family: horizontal multistage pumps

Application Limit:

Ambient Temperature to +40 °C
Manometric suction lift up to 7 m
Liquid temperature:
– between -10 °C and +60 °C for 2-5CR
– between -10 °C and +40 °C for 2-5CR X
Max. working pressure 7 bar
Continuous service S1
