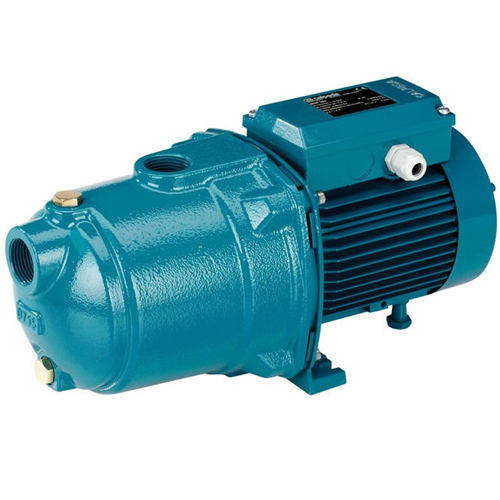

Multi Stage centrifugal pump CALPEDA MGP405m 1,1kW 1,5Hp 230V 50Hz Heavy Duty Z5

Description

MGP Horizontal Multi-Stage Close Coupled Pumps

CONSTRUCTION

Horizontal multi-stage close coupled pump.
Single-piece barrel casing in cast iron, with front suction port above pumps axis and radial delivery at top.
Stages in Noryl.

APPLICATIONS

For water supply.
For domestic use, for garden use and irrigation.

OPERATING CONDITIONS

Liquid temperature: 0 °C to +50 °C.
Ambient temperature up to +40 °C.
Maximum permissible pressure in the pump casing: 8 bar.
Continuous duty.

MOTOR

2-pole induction motor, 50 Hz (n ≈ 2800 rpm).
MGP: three-phase 230/400 V ± 10%.
MGPM: single-phase 230 V ± 10%, with thermal protector.
Capacitor inside the terminal box.
Insulation class F.
Protection IP 54.
Classification scheme IE2 for three-phase motors from 0,75 kW.
Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41.

SPECIAL FEATURES ON REQUEST

Other voltages.
Frequency 60 Hz
Motor suitable for operation with frequency converter.
