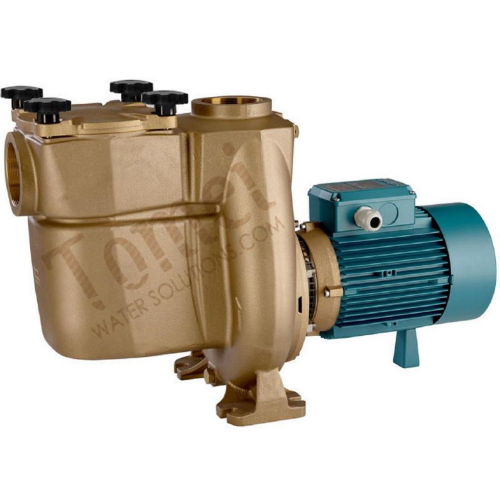

Calpeda BNMPM 32/12FE Filtration PUMP Swimming pool Sea water Self-suction 230V 0,75Hp with prefilter basket
| Price: | €2.492,01 VAT included (22%) |
|---|---|
| Freight costs: | FreeDetails |
| MPN: | 61E00021000 |
| GPSR Compliance: | Details |
| Availability: | Available Handling time: 10 business days |
| Quantity: |
Users feedback
Description
Technical details
| Model | BNMPM 32/12FE |
| Type | Pool pumps with strainer |
| Self-priming | Yes |
| Power supply | Mono-phase 1x230V |
| [kW] | 0,55 |
| [Hp] | 0,75 |
| Flow Rate Q [l/min] | 110 ÷ 250 |
| Head H [m] | 12 ÷ 8 |
| ØAspiration | 2" |
| ØOutlet | 2" |
| Pump Body | Bronze |
| Impeller | Brass |
Calpeda NMP Self-Priming Centrifugal Pumps with built-in strainer
Construction
Close-coupled self-priming centrifugal pumps with built-in strainer.
Inner basket with Ø 3 mm holes.
NMP: version with pump casing and lantern bracket in cast iron, with cataphoresis coating.
B-NMP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
Calpeda BNMPM 32/12FE Filtration PUMP Swimming pool Sea water Self-suction 230V 0,75Hp with prefilter basket
Applications
For water circulation in swimming pool filtration systems.
For clean or slightly dirty water with solids in suspension.
LOperating conditions
Liquid temperature up to 60° C.
Ambient temperature up to 40° C.
Total suction lift up to 7 m.
Maximum permissible working pressure up to 6 bar.
Continuous duty.
Calpeda BNMPM 32/12FE Filtration PUMP Swimming pool Sea water Self-suction 230V 0,75Hp with prefilter basket
Motor
2-pole induction motor, 50 Hz (n ? 2900 rpm).
NMP: three-phase 230/400 V ± 10% up to 3 kW;
400/690 V ± 10% from 4 to 7,5 kW;
NMPM: single-phase 230 V ± 10%, with thermal protector.
Insulation class F.
Protection IP X4.
