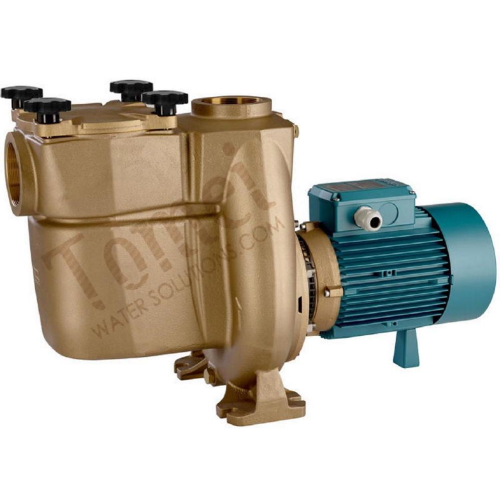

Calpeda POOL pump Bronze Sea water BNMP 50/12D/A 3ph 400V 4Hp filtration for ship
| Price: | €3.189,20 VAT included (22%) |
|---|---|
| Freight costs: | FreeDetails |
| MPN: | 61D00862000 |
| GPSR Compliance: | Details |
| Availability: | Available Handling time: 10 business days |
| Quantity: |
Users feedback
Description
Technical details
| Model | BNMP 50/12D/A |
| Type | Pool pumps with strainer |
| Self-priming | Yes |
| Power supply | Three-phase 3x230/400V |
| [kW] | 3 |
| [Hp] | 4 |
| Flow Rate Q [l/min] | 315 ÷ 900 |
| Head H [m] | 18 ÷ 11,5 |
| ØAspiration | 2.1/2" |
| ØOutlet | 2.1/2" |
| Pump Body | Bronze |
| Impeller | Bronze |
Calpeda NMP Self-Priming Centrifugal Pumps with built-in strainer
Construction
Close-coupled self-priming centrifugal pumps with built-in strainer.
Inner basket with Ø 3 mm holes.
NMP: version with pump casing and lantern bracket in cast iron, with cataphoresis coating.
B-NMP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
Calpeda POOL pump Bronze Sea water BNMP 50/12D/A 3ph 400V 4Hp filtration for ship
Applications
For water circulation in swimming pool filtration systems.
For clean or slightly dirty water with solids in suspension.
LOperating conditions
Liquid temperature up to 60° C.
Ambient temperature up to 40° C.
Total suction lift up to 7 m.
Maximum permissible working pressure up to 6 bar.
Continuous duty.
Calpeda POOL pump Bronze Sea water BNMP 50/12D/A 3ph 400V 4Hp filtration for ship
Motor
2-pole induction motor, 50 Hz (n ? 2900 rpm).
NMP: three-phase 230/400 V ± 10% up to 3 kW;
400/690 V ± 10% from 4 to 7,5 kW;
NMPM: single-phase 230 V ± 10%, with thermal protector.
Insulation class F.
Protection IP X4.
