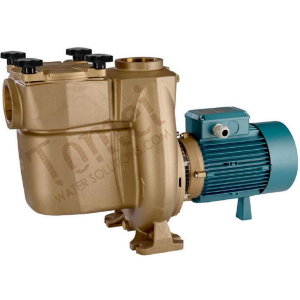

Salt water pump with filter basket Calpeda BNMP 32/12A/A Bronze circulation Swimming pool 3ph 400V 0,75Hp 15m3/h
| Price: | €2.482,71 VAT included (22%) |
|---|---|
| Freight costs: | FreeDetails |
| MPN: | 61D00062000 |
| GPSR Compliance: | Details |
| Availability: | Available Handling time: 10 business days |
| Quantity: |
Users feedback
Description
Technical details
| Model | BNMP 32/12A/A |
| Type | Pool pumps with strainer |
| Self-priming | Yes |
| Power supply | Three-phase 3x230/400V |
| [kW] | 1,1 |
| [Hp] | 1,5 |
| Flow Rate Q [l/min] | 110 ÷ 250 |
| Head H [m] | 22 ÷ 18,5 |
| ØAspiration | 2" |
| ØOutlet | 2" |
| Pump Body | Bronze |
| Impeller | Brass |
Calpeda NMP Self-Priming Centrifugal Pumps with built-in strainer
Construction
Close-coupled self-priming centrifugal pumps with built-in strainer.
Inner basket with Ø 3 mm holes.
NMP: version with pump casing and lantern bracket in cast iron, with cataphoresis coating.
B-NMP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
Salt water pump with filter basket Calpeda BNMP 32/12A/A Bronze circulation Swimming pool 3ph 400V 0,75Hp 15m3/h
Applications
For water circulation in swimming pool filtration systems.
For clean or slightly dirty water with solids in suspension.
LOperating conditions
Liquid temperature up to 60° C.
Ambient temperature up to 40° C.
Total suction lift up to 7 m.
Maximum permissible working pressure up to 6 bar.
Continuous duty.
Salt water pump with filter basket Calpeda BNMP 32/12A/A Bronze circulation Swimming pool 3ph 400V 0,75Hp 15m3/h
Motor
2-pole induction motor, 50 Hz (n ? 2900 rpm).
NMP: three-phase 230/400 V ± 10% up to 3 kW;
400/690 V ± 10% from 4 to 7,5 kW;
NMPM: single-phase 230 V ± 10%, with thermal protector.
Insulation class F.
Protection IP X4.
