Swimming pool Pump with strainer CALPEDA MPC31m/A 0,75kW 1Hp 230V 50Hz Z5

Swimming pool Pump with strainer CALPEDA MPC31m/A 0,75kW 1Hp 230V 50Hz Z5
Price:

382,01 VAT included (22%)

Freight costs:
MPN: 66E20031000
EAN: 8030485443865
Availability: Available Handling Time: Immediate delivery
Quantity:

Users feedback

Description

Technical details

ModelMPCM 31/A
PowerSingle Phase 230V 50Hz
kW0,75
Hp1
Flow Rate Q [l/min]0 ÷ 300
Head H [m]15,6 ÷ 6,2
Aspiration2"
Outlet1.½"
Power CableNOT Provided
Pump bodyThermoplastic
ImpellerNoryl
Motor Efficiency ClassIE2

MPC Self Priming Swimming Pool Pumps

CONSTRUCTION

Self-priming swimming pool pumps with built-in strainer and motor insulated from pumped water.
The pump is made with high quality plastic materials, corrosion and sand erosion resistant.
With stainless steel diffuser.
Base-plate kit.

APPLICATIONS

For water circulation in swimming pool filtration systems.
For clean or slightly dirty water with solids in suspension.

OPERATING CONDITIONS

Water temperature up to 60 °C.
Ambient temperature up to 40 °C.
Maximum permissible pressure in the pump casing 2,5 bar.
Continuous duty.

MOTOR

2-pole induction motor, 50 Hz (n ≈ 2800 rpm).
MPC: three-phase 230/400 V ± 10%.
MPCM: single-phase 230 V ± 10%, with thermal protector.
Capacitor inside the terminal box.
Insulation class F.
Protection IP X4.
Classification scheme IE2 for three-phase motors from 0,75 kW.
Constructed in accordance with: EN 60034-1; EN 60034-30; EN 60335-1, EN 60335-2-41.

SPECIAL FEATURES ON REQUEST

Other voltages.
Frequency 60 Hz

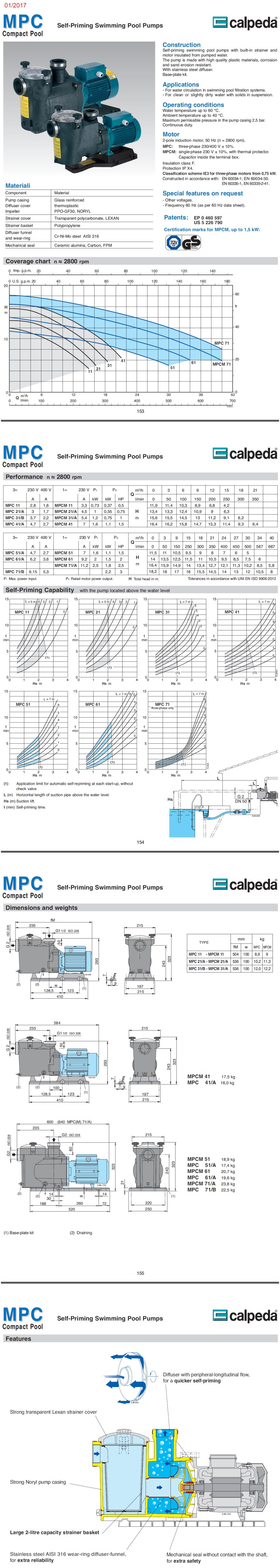

Data sheet Calpeda MPCM 31/A
