CALPEDA HOUSEHOLD Self-Priming Pump Jet NG 3/A 0,75 Hp Three-phase A cast iron pressure booster To draw water

CALPEDA HOUSEHOLD Self-Priming Pump Jet NG 3/A 0,75 Hp Three-phase A cast iron pressure booster To draw water
Price:

335,18 VAT included (22%)

Freight costs:
MPN: 70A40031000
Availability: Available Handling time: 5 business days
Quantity:

Users feedback

Description

Technical details

ModelNG 3/A
TypeSelf-priming single-impeller
Power supplyThree-phase 3x230/400V
[Kw]0,55
[Hp]0,75
Flow Rate Q [l/min]4,1 ¸ 50
Head H [m]49 ¸ 24
Max suction Hs [m]7
ěAspiration1"
ěOutlet1"
Pump bodyCast iron
ImpellerBrass
For salt waterNo
Power CableNOT provided
Main functionSuction from wells, cisterns, waterways
CALPEDA HOUSEHOLD Self-Priming Pump Jet NG 3/A 0,75 Hp Three-phase A cast iron pressure booster To draw water

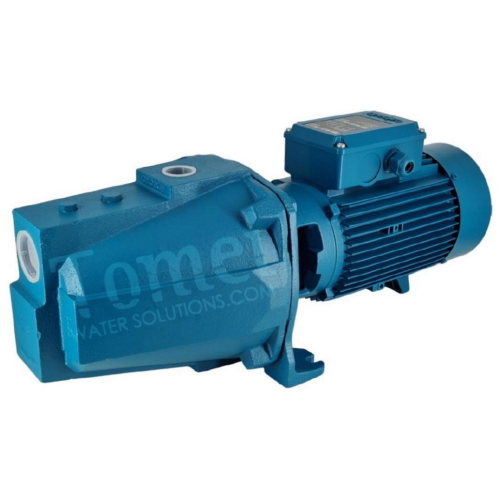

Calpeda NG Close-coupled self-priming pumps

Construction

Close-coupled self-priming shallow well jet pumps with built-in ejector.
NG: version with pump casing and lanter bracket in cast iron.
B-NG: version with pump casing and lanter bracket in bronze
(the pumps are supplied fully painted).



CALPEDA HOUSEHOLD Self-Priming Pump Jet NG 3/A 0,75 Hp Three-phase A cast iron pressure booster To draw water
Applications

For drawing water out of a well.
As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).
For clean liquids or slightly dirty surface water.
For garden use.
For washing with a jet of water.



Operating conditions

Liquid temperature up to 40 ░C.
Ambient temperature up to 40 ░C.
Maximum permissible working pressure up to 10 bar.
Continuous duty.



CALPEDA HOUSEHOLD Self-Priming Pump Jet NG 3/A 0,75 Hp Three-phase A cast iron pressure booster To draw water
Motor

2-pole induction motor, 50 Hz (n ? 2900 rpm). NG: three-phase 230/400 V ▒ 10%.
NGM:single-phase 230 V ▒ 10%, with thermal protector.
Capacitor inside the terminal box.
Insulation class F.
Protection IP 54.

Calpeda Data Sheet NG 3/A
