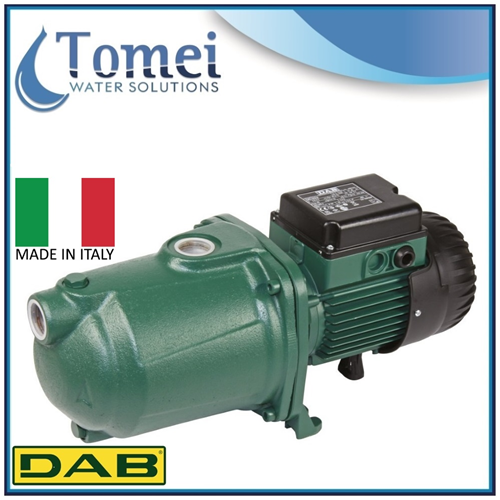

Centrifugal Electric Water Pump in Cast-Iron EURO30/80 M 0,8KW 1,1HP 240V DAB

Description

EURO DAB

MULTI-STAGE CENTRIFUGAL ELECTRIC PUMP

APPLICATIONS

Multi-stage centrifugal pump with horizontal shaft, featuring extremely quiet operation suitable for domestic water supply and pressurisation, irrigation of gardens and general water movement.

CONSTRUCTIONAL FEATURES OF THE PUMP

Pump body in 200 UNI ISO 185 cast iron.
Motor support in die cast aluminum, with seal holder cover in AISI 304 stainless steel.
Carbon/ceramic mechanical seal.
Rotor shaft in AISI 304 stainless steel.
Impeller and diffuser bodies and diffuser in technopolymer.
Stainless steel wear ring.

CONSTRUCTIONAL FEATURES OF THE MOTOR

Asynchronous, continuous service motor.
Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.
Overload protection to be provided by the user for the three-phase version.

TECHNICAL DATA

Liquid quality requirements:

clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral, close to the properties of water.

Liquid temperature range:

for domestic use: from 0°C to +35°C (EN 60335-2-41). For other use: from 0°C to +40°C

Maximum ambient temperature:

+40°C

Installation:

fixed or portable in a horizontal position.

Motor protection rating:

IP 44

Terminal block protection rating:

IP 55

Insulation class:

F

Standard input voltage:

Single Phase 220-240V 50Hz. Three Phase 230/400V 50Hz
