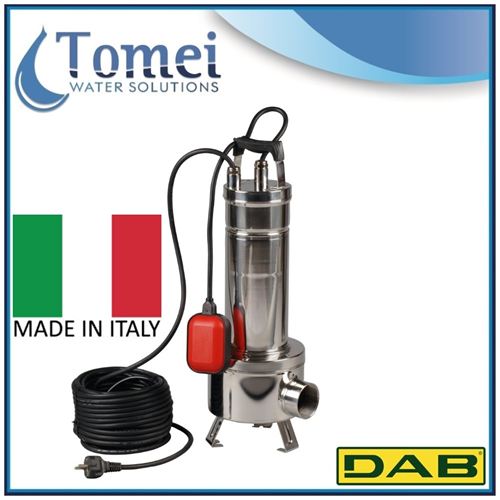

Submersible pump dirty water FEKA VS750M-A Vortex 0,75Kw 1x230V 50Hz Float DAB

Submersible pump dirty water FEKA VS750M-A Vortex 0,75Kw 1x230V 50Hz Float DAB
Price:

514,00 VAT included (22%)

Freight costs:
MPN: 103040040
EAN: 8033146265660
Availability: Available Handling Time: Immediate delivery
Quantity:

Users feedback

Description

Technical details

Model:FEKA VS 750 M-A
Power Supply:1x230V 50Hz
[Kw]:0,75
[Hp]:1
Flow Rate Q [l/min]:0 - 400
Head H [m]:9,6 - 1,9
Pump body:Stainless steel AISI304
Impeller:Vortex in stainless steel
Ø Outlet:2"
Solid parts passage:50 mm
Float switch:with Float
Power cord:10m with plug

DAB serie FEKA VS
SUBMERSIBLE PUMPS

APPLICATIONS

Stainless steel submersible centrifugal pump with microcast steel liquid vortex impeller, suitable for lifting sewage and drain water in general containing solid matter with size up to 50 mm.

TECHNICAL DATA

Operating range: from 0 to 32 mc/h with head up to 14 metres.
Pumped liquid: sewage water and used water in general, non aggressive.
Free passage: 50 mm.
Liquid temperature range:
- from 0 °C to +35 °C for domestic use (EN 60335-2-41).
- from 0 °C to +50 °C for other uses.
Maximum ambient temperature for operation with motor above water: +40 °C
Maximum immersion depth: 7 metres.
Motor protection class: IP 68
Insulation class: F
Standard voltage: 220-240V 50Hz single-phase, 380-415V 50Hz three-phase.
Power cable: 10 metre H07RN-F, with plug for the single-phase version.
Installation: fixed or portable, vertical position.

CONSTRUCTION FEATURES OF THE PUMP

AISI 304 stainless steel pump body, seal cover, motor cover, and cap with handle.
Microcast steel impeller.
Insulating rubber covered handle.
AISI 316 stainless steel motor shaft.
Double mechanical seal with interposed oil chamber (non-toxic oil) in carbon-alumina on the motor side, and silicon carbide/silicon carbide on the pump side.

CONSTRUCTION FEATURES OF THE MOTOR

Dry, asynchronous and waterproof motor, cooled by the pumped liquid.
Rotor running on permanently lubricated ball bearings, selected to ensure low noise and durability.
Overcurrent protection as standard for the single-phase version, optional for the three-phase version.
Permanently connected capacitor in the single-phase version.
Continuous duty with liquid temperature 35 °C and completely submerged pump.
The single-phase version can be supplied with float for automatic operation.
Power cable: 10 metre H07RN-F, with plug for the single-phase version.
Number of poles: 2
Max starts/hour: 20

Data sheet DAB FEKA VS 750M-A
