Self-Priming Electro Water Pump SET UP in Cast-Iron JET 82 M-P 0,6KW 240V DAB

Description

JET - JET INOX - EUROINOX M-P DAB

PREPARED CENTRIFUGAL ELECTRIC PUMPS

APPLICATIONS

Self priming centrifugal pump with excellent suction capacity even in the presence of air bubbles.
Suitable for pumping water with low levels of sandy impurities.
Especially used in domestic water supply installations.
Suitable for small farms and gardening, small scale industrial services and where self priming is necessary.

CONSTRUCTIONAL FEATURES OF THE PUMP

Pump body in cast iron for JET pumps and in stainless steel for the JETINOX and EUROINOX pumps
Motor support in die cast aluminum.
Impeller, diffuser, venturi tube and sand guard in technopolymer.
Stainless steel wear ring.
Carbon/ceramic mechanical seal.

Single Phase Version:

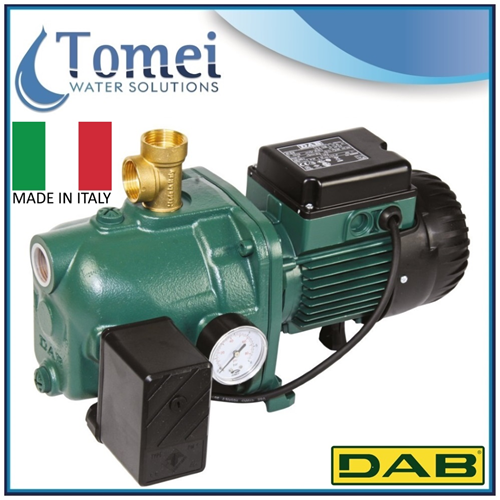

electric pump set up with pressure gauge, pressure switch, power cord with plug and three-way brass fitting for use when connecting to a tank

Three-Phase Version:

electric pumpa set up with pressure gauge, pressure switch, remote overload protection and three-way brass fitting for use when connecting to a tank

CONSTRUCTIONAL FEATURES OF THE MOTOR

Asynchronous type, closed, with external air cooling.
Rotor mounted on oversized greased-for-life ball bearings, to guarantee low noise and long life.
Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.
It is recommended to use overload protection for three phase motor protection, in compliance with current legislation.
Manufactured pursuant to CEI 2-3 and CEI 61-69 (EN 60335-2-41).

TECHNICAL DATA

Liquid quality requirements:

clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral, close to the properties of water.

Liquid temperature range:

from 0°C to +35°C for domestic use (EN 60335-2-41). For other use: from 0°C to +40°C

Maximum ambient temperature:

+40°C

Installation:

fixed in a horizontal position.

Special executions on request:

different frequencies and/or voltage.

Motor protection rating:

IP 44

Terminal block protection rating:

IP 55

Insulation class:

F

Standard input voltage:

Single Phase 220/240V 50Hz. Three Phase 230/400V 50Hz
