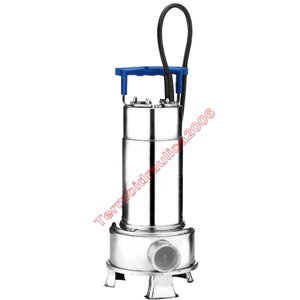

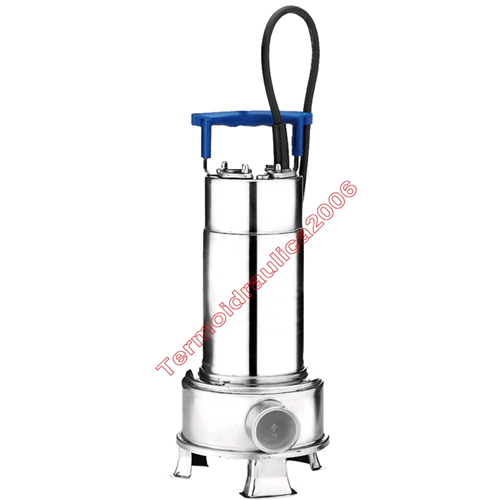

EBARA Submersible Electric Pump Loaded Water RIGHT75 0,75Hp 0,55kW 3x400V 50Hz 5 m Cable AISI 304 Stainless Steel 35 mm Solid Part Passage

EBARA Submersible Electric Pump Loaded Water RIGHT75 0,75Hp 0,55kW 3x400V 50Hz 5 m Cable AISI 304 Stainless Steel 35 mm Solid Part Passage
Price:

385,50 VAT included (22%)

Freight costs:
MPN: 1771030004A
EAN: 8052990491247
Availability: Available Handling time: 10 business days
Quantity:

Users feedback

Description

Technical details

ModelRIGHT 75
Liquid TypeLoaded Water
Solid Parts Passage [Mm]35
Voltage3x400V 50Hz
Hp0,75
Kw0,55
Flow Rate Q [L/Min]40÷160÷240
Head H [M]7,8÷4,7÷2
Discharge1"½
Power Cable [M]5
Float SwitchNo
Pump BodyStainless Steel AISI 304
ImpellerStainless Steel AISI 304

RIGHT EBARA

Submersible

SUBMERSIBLE ELECTRIC PUMPS FOR FOUL WASTE WATER IN AISI304

APPLICATIONS

Moving foul waste liquids withtaining solid substances and/or suspended filamentary substances
Emptying seepage water
Moving foul waste waters (sanitary services)
Emptying cesspits and draining into sewers

TECHNICAL DETAILS

Equipped with 5 m of H07 RN-F power supply cable (on request 10 m of H07 RN-F cable)
Available with or without float

PUMP TECHNICAL DATA

Maximum immersion: 2 m for pumps with 5m cable
Maximum immersion: 7 m for pumps with 10m cable
Maximum temperature of the liquid: 50°C
Max. solids size for passage: 35 mm
Discharge connection: G1½

MOTOR TECHNICAL DATA

Self-ventilated 2 poles asynchronous motor
Class of insulation F
IPX8 Protection rating
230V ± 10%, 50Hz Single Phase Voltage
400V ± 10%, 50Hz Three Phase Voltage
Permanent capacitor inserted and thermo-amperometric protection with automatic rearm incorporated for the single phase motor
Protection under user’s responsibility for the three phase version

MATERIALS

Pump casing, impeller, motor cover, seal housing disc and motor case in AISI 304
Shaft in AISI 303 (part in contact with the liquid)
Twin mechanical seal with oil chamber:
Upper in Carbon/Ceramic/NBR (motor side)
Lower in SiC/SiC/NBR (pump side)

SPECIAL VERSIONS

MA version with float
Version with 10 m of cable

Data sheet Ebara RIGHT 75
