Pedrollo NGA PRO Centrifugal Pump Open Impeller NGA 1B-PRO 0,55 kW 0,75Hp Threephase IE2 Body and Impeller STAINLESS STEEL AISI 316

Pedrollo NGA PRO Centrifugal Pump Open Impeller NGA 1B-PRO 0,55 kW 0,75Hp Threephase IE2 Body and Impeller STAINLESS STEEL AISI 316
Price:

422,50 VAT included (22%)

Freight costs:
MPN: 44GEX32BA
Availability: Available Handling Time: Immediate delivery
Quantity:

Users feedback

Description

Technical details

ModelNGA 1B-PRO
Power SupplyThree Phase
Kw0,55
Hp0,75
Flow Rate Q L/min50 ÷ 325
Head H Metres17 ÷ 6
Aspiration1½"
Outlet1½"
Power CableNOT Provided
Pump BodyStainless Steel AISI 316
ImpellerStainless Steel AISI 316
Motor Efficiency ClassIE2

INSTALLATION AND USE

The open impeller design allows liquids containing relatively high levels of impurities to be pumped without the risk of the impeller clogging. All of the components in contact with the pumped liquid are constructed in stainless steel AISI 316. As a result of these characteristics the NGA-PRO series pumps find specific use in assemblies for washing fruit, vegetables, fish and shellfish, in industrial assemblies for washing metallic objects and glass containers, as well as for the circulation of cooling liquids. Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather

FEATURES

Liquid type: clean water
Uses: industrial, agriculture

APPLICATIONS:

water supply systems,
washing systems,
cooling systems,
water treatment plants.

Typology: surface
Family: centrifugal

APPLICATION LIMIT:

Temperature of the liquid from -10 °C to +90 °C
Ambient Temperature from -10 °C to +40 °C
Manometric suction lift up to 7 m
Max. working pressure 6 bar
Passage of suspended solids up to Ø 10 mm

Continuous service S1

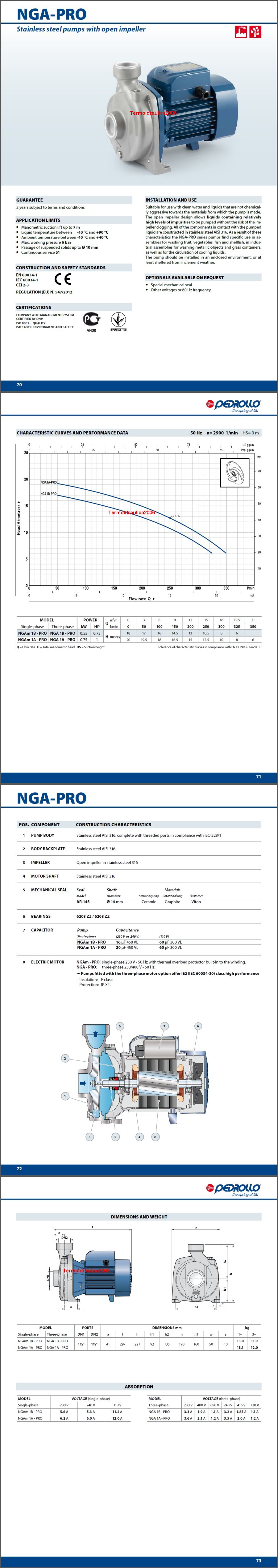

Data sheets Pedrollo NGA 1B-PRO
