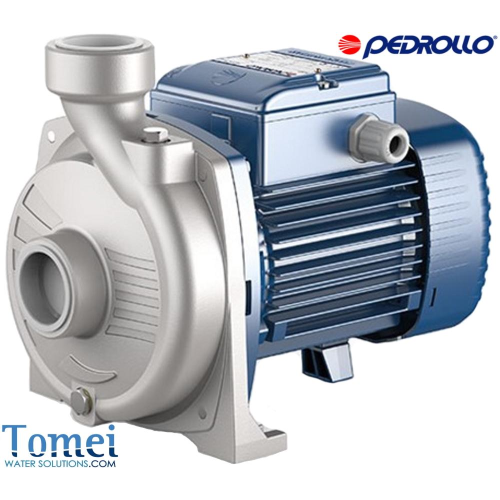

Pump with open impeller in Stainless steel for water treatment NGAm1B-PRO 0,75HP

Description

The open impeller design allows liquids containing relatively high levels of impurities to be pumped without the risk of the impeller clogging. All of the components in contact with the pumped liquid are constructed in stainless steel AISI 316. As a result of these characteristics the NGA-PRO series pumps find specific use in assemblies for washing fruit, vegetables, fish and shellfish, in industrial assemblies for washing metallic objects and glass containers, as well as for the circulation of cooling liquids. Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather

Liquid type: Clean Water Uses: industrial, agriculture Applications: water supply systems, washing systems, cooling systems, water treatment plants typology: surface Family: centrifugal

Temperature of the liquid from -10 °C to +90 °C Ambient Temperature da -10 °C to +40 °C Manometric suction lift up to 7 m Max. working pressure 6 bar Passage of suspended solids up to Ø 10 mm Continuous service S1
