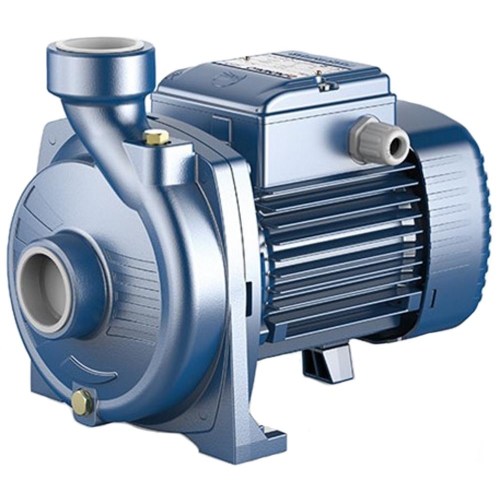

NGA 1A PEDROLLO Pump with open impeller in Cast Iron for washing 0,75 kW 1 HP
| Price: | €308,48 VAT included (22%) |
|---|---|
| Freight costs: | FreeDetails |
| MPN: | 44GEX51AA |
| EAN: | 8052230008709 |
| GPSR Compliance: | Details |
| Availability: | Available Handling time: 2 days |
| Quantity: |
Users feedback
Description
Technical details
| Model | NGA 1A |
| Power | Three-phase |
| kW | 0,75 |
| HP | 1 |
| Flow Rate Q [l/min] | 50 ÷ 350 |
| Head H [m] | 19,5 ÷ 6 |
| DN1 | 1½" |
| DN2 | 1½" |
| Pump body | Cast Iron |
| Impeller | Stainless steel AISI 316 |
Description
Suitable for use with liquids that are not chemically aggressive towards the materials from which the pump is made.
The open impeller design allows liquids containing relatively high levels of impurities to be pumped without the risk of the impeller clogging. As a result of these characteristics the NGA series pumps are used specifically in industry and for transferring water from canals, rivers, reservoirs, tanks, etc.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Features
Liquid type: Clean Water
Uses: domestic, industrial, agriculture
Applications: water supply systems, washing systems
typology: surface
Family: centrifugal
Application Limit:
Temperature of the liquid from -10 °C to +90 °C
Ambient Temperature da -10 °C to +40 °C
Manometric suction lift up to 7 m
Max. working pressure 6 bar
Passage of suspended solids up to Ø 10 mm
Continuous service S1
