Pedrollo BC "DOUBLE-CHANNEL" Submersible pumps for sewage water BC10/50 0,75kW 1HP Three-phase Cable 5m
| Price: | €322,06 VAT included (22%) |
|---|---|
| Freight costs: | FreeDetails |
| MPN: | 48SGM81A0A |
| EAN: | 8052230015592 |
| GPSR Compliance: | Details |
| Availability: | Available |
| Quantity: |
Users feedback
Description

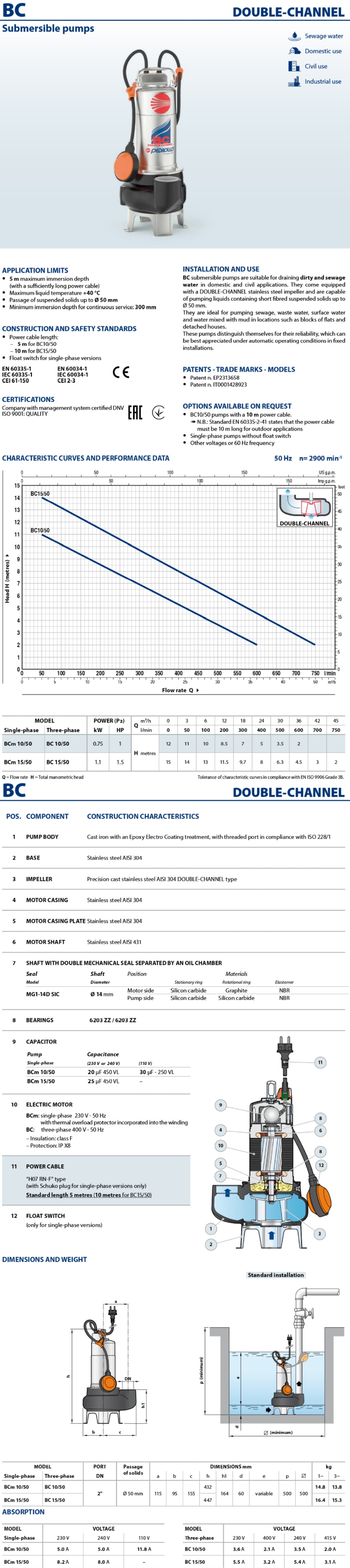

Technical details
| Model | BC 10/50 |
| Power | Three-phase |
| kW | 0,75 |
| HP | 1 |
| Flow Rate Q [l/min] | 50 ÷ 600 |
| Head H [m] | 11 ÷ 2 |
| DN | 2" |
| Passage of solids mm | Ø 50 |
| Liquid type | Sewage Water |
| Float Switch | No |
| Pump body | Cast Iron |
| Impeller | Precision Cast Stainless Steel AISI 304 DOUBLE-CHANNEL |
| Cable | 5m |
Description
BC submersible pumps are suitable for draining dirty water and sewage in domestic and civil applications.
They come equipped with a DOUBLE-CHANNEL stainless steel impeller and are capable of pumping liquids containing short fibred suspended solids up to Ø 50 mm.
They are ideal for pumping sewage water, waste water, surface water and water mixed with mud in locations such as holiday homes and detached homes.
These pumps distinguish themselves for their reliability, which can be best appreciated under automatic operating conditions in fixed installations.
Features
Liquid type: Sewage water
Uses: domestic, civil, industrial
Applications: drainage, dirty water - slightly solid particles
typology: submersible
Family: submersible pumps
Application Limit:
Temperature of the liquid to +40 °C
• 5 m maximum immersion depth
• Passage of suspended solids up to Ø 50 mm
• Minimum immersion depth for continuous service:
up to 305 mm for BC10/50-N, up to 320 mm for BC15/50-N
