Pedrollo TOP-VORTEX Submersible pump for dirty water with Float Switch TOP 2-VORTEX 0,37kW 0,5HP Mono-phase 230V Cable 5m
| Price: | €177,10 VAT included (22%) |
|---|---|
| Freight costs: | FreeDetails |
| MPN: | 48TOPV12A1 |
| EAN: | 8052230022934 |
| GPSR Compliance: | Details |
| Availability: | Available Handling Time: Immediate delivery |
| Quantity: |
Users feedback
Description

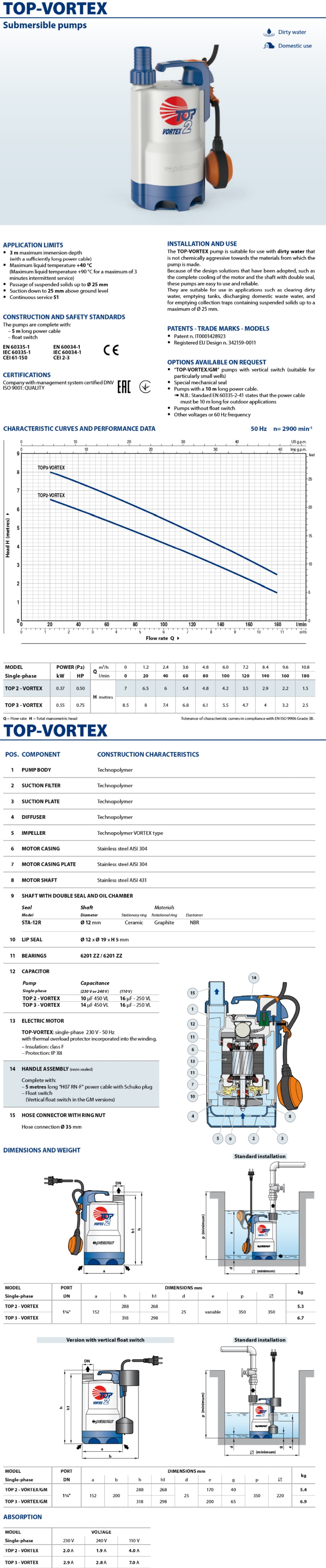

Technical details
| Model | TOP 2-VORTEX |
| Power | Mono-phase |
| kW | 0,37 |
| HP | 0,5 |
| Flow Rate Q [l/min] | 20 ÷ 180 |
| Head H [m] | 6,5 ÷ 1,5 |
| DN | 1¼" |
| Float Switch | Yes |
| Cable | 5 meters |
| Impeller | VORTEX in technopolymer |
| Liquid | Dirty water |
| Hose connector [Ø] | 25 mm |
| Handle | Yes |
| Passage of solids [Ø] | 25 mm |
Description
The TOP-VORTEX pump is suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made. As a result of the design solutions that have been adopted, such as the complete cooling of the motor and the shaft with double seal, these pumps are easy to use and reliable. They are suitable for use in applications such as clearing dirty water, emptying tanks, discharging domestic waste water, and for emptying collection traps containing suspended solids up to a maximum of Ø 20 mm.
Features
Liquid type: Dirty water
Uses: domestic
Applications: drainage, dirty water - slightly solid particles, emptying tanks
typology: submersible
Family: submersible pumps
Application Limit:
• 3 m maximum immersion depth (with a sufficiently long power cable)
• Maximum liquid temperature +40 °C (Maximum liquid temperature +90 °C for a maximum of 3 minutes intermittent service)
• Passage of suspended solids up to Ø 25 mm
• Suction down to 25 mm
