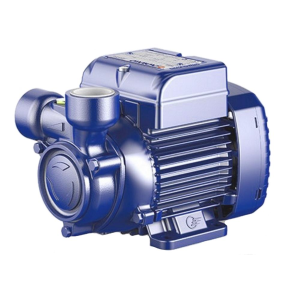

Water Pump Made in Italy with peripheral impeller Brass Impeller PQ100 PEDROLLO

Description

The hydraulic characteristics of these pumps, coupled with their compactness, makes them suitable for use in both domestic and industrial applications.
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Liquid type: Clean Water
Uses: domestic
Applications: irrigation pumps, cooling systems, air conditioning systems, ironing system, washing systems, water supply systems, pressure systems
typology: surface
Family: peripheral

Temperature of the liquid from -10 °C to +90 °C
Ambient temperature between -10 °C and +40 °C (+50 °C for PQ 60)
Manometric suction lift up to 8 m
Max. working pressure:
– 6 bar for PQ 60, PQ 65
– 7 bar for PQ 70, PQ 80
– 10 bar for PQ 90, PQ 100, PQ 200, PQ 300
Continuous service S1
