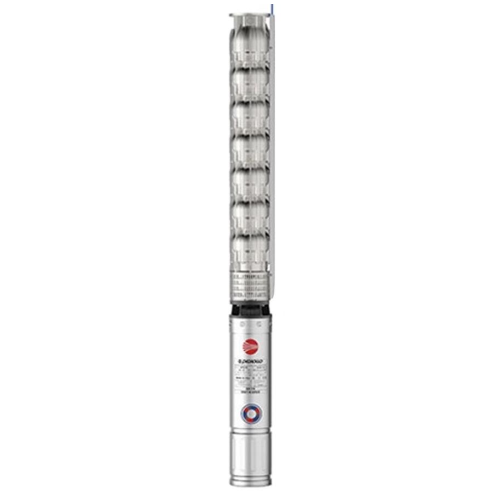

Deep Well BOREHOLE water pump Pedrollo 6HR 54/3-PD 3phase 5,5kW Farm Watering HIGH FLOW rewindable motor profesional 6 inch

Description

Suitable for use with clean water with a sand content of no more than 100 g/m3.
Because of their high efficiency and reliability, they are suitable for use in civil, agricultural and industrial applications such as the distribution of water in combination with pressure tanks, for irrigation and for pressure boosting in fire-fighting sets, etc.

Liquid type: Clean Water
Uses: civil, industrial, agriculture
Applications: water supply systems, fire-fighting sets, pressure systems, irrigation pumps
typology: submersible
Family: submersible 6" pumps

Temperature of the liquid to +35 °C
Maximum sand content 100 g/m³
200 m immersion limit
Installation:
– vertical
– horizontal, with the following limits:
6HR34 up to 11 stages
6HR44 fino a 10 stages
6HR54 fino a 9 stages
6HR64 fino a 7 stages
Starts/hour: 20 at regular intervals
Minimum flow rate for motor cooling 10 cm/s
Continuous service S1
