Pedrollo 4BLOCK 4” Monoblock Submersible Borehole Pump 4BLOCKm 4/9 0,75 kW 1Hp Monophase Cable 20 Mt Body STAINLESS STEEL AISI 304 Impeller LEXAN

Pedrollo 4BLOCK 4” Monoblock Submersible Borehole Pump 4BLOCKm 4/9 0,75 kW 1Hp Monophase Cable 20 Mt Body STAINLESS STEEL AISI 304 Impeller LEXAN
Price:

394,00 VAT included (22%)

Freight costs:
MPN: 49M41409LA1
Availability: Available Handling Time: Immediate delivery
Quantity:

Users feedback

Description

Datasheets

Model4BLOCKm4/9
Diameter Pump4 inches - 100 mm
Power SupplySingle Phase 230V 50Hz
kW0,75
Hp1
Liquid TypeClean Water - Maximum sand content 150 g/mc
Flow Rate Q L/min20 ÷ 100
Head H Metres56 ÷ 23
Outlet1¼"
Power Cable20 meter
Float SwitchWithout
Pump BodyStainless Steel AISI 304
ImpellerLexan

INSTALLATION AND USE

Ready to install, stainless steel monoblock submersible pump. Complete with: motor with built-in capacitor and thermal overload protector 20 m long power cable. Suitable for pumping clean water from boreholes that contain sand (up to 150 g/m³). As a result of their high efficiency and reliability they are suitable for use in domestic applications such as domestic water supply as part of a pressure supply and for irrigation, etc.

FEATURES

Liquid type: clean water
Uses: domestic, civil, agriculture

APPLICATIONS:

water supply systems, pressure systems, irrigation pumps.

Typology: submersible
Family: submersible monoblock pumps 4"

APPLICATION LIMIT:

Temperature of the liquid to +35 °C
Maximum sand content 150 g/m³
Maximum immersion depth of 60 m with a sufficiently long power cable
Vertical and horizontal installation
Starts/hour: 20 at regular intervals

Continuous service S1

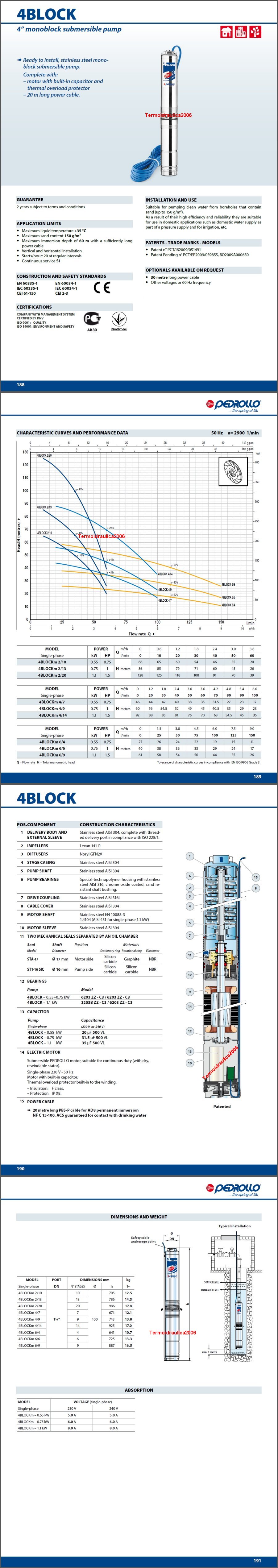

Data Sheet Pedrollo 4BLOCK
