Submersible pump Clear water NOVA UP600M-A 0,52Kw 1x230V 50Hz Float cable10m DAB

Description

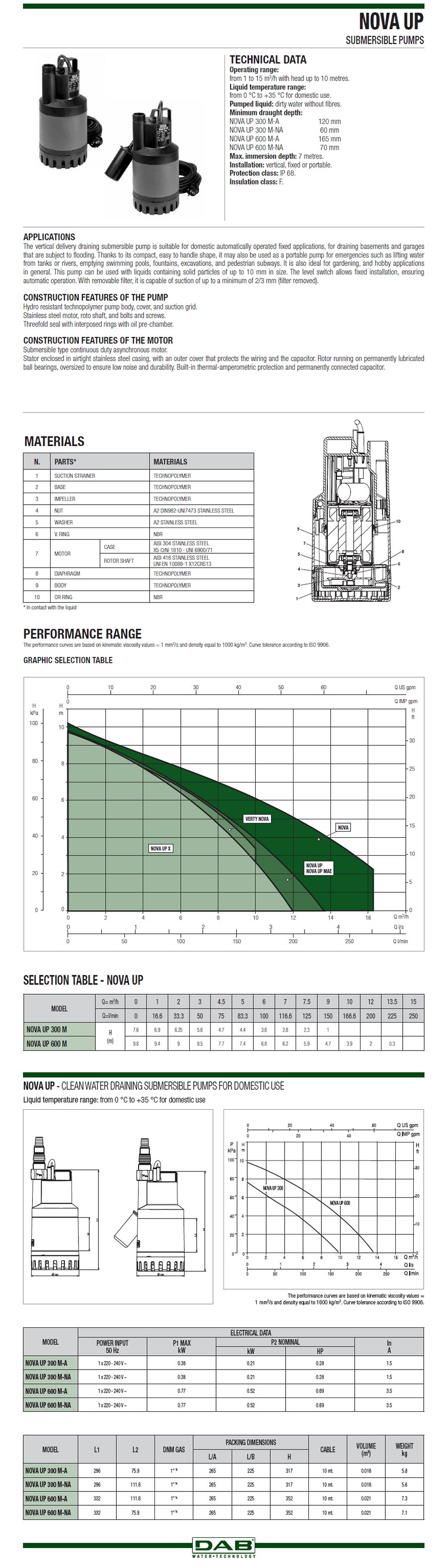

DAB serie NOVA UP
Submersible pumps

APPLICATIONS

The vertical delivery draining submersible pump is suitable for domestic automatically operated fixed applications, for draining basements and garages that are subject to flooding.
Thanks to its compact, easy to handle shape, it may also be used as a portable pump for emergencies such as lifting water from tanks or rivers, emptying swimming pools, fountains, excavations, and pedestrian subways.
It is also ideal for gardening, and hobby applications in general.
This pump can be used with liquids containing solid particles of up to 10 mm in size.
The level switch allows fixed installation, ensuring automatic operation.
With removable filter, it is capable of suction of up to a minimum of 2/3 mm (filter removed).

TECHNICAL DATA

Operating range: from 1 to 15 mc/h with head up to 10 metres.
Liquid temperature range: from 0°C to +35°C for domestic use.
Pumped liquid: dirty water without fibres.
Minimum draught depth:
NOVA UP 300 M-A: 120 mm
NOVA UP 300 M-NA: 60 mm
NOVA UP 600 M-A: 165 mm
NOVA UP 600 M-NA: 70 mm
Max. immersion depth: 7 metres.
Installation: vertical, fixed or portable.
Protection class: IP 68.
Insulation class: F.

CONSTRUCTION FEATURES OF THE PUMP

Hydro resistant technopolymer pump body, cover, and suction grid.
Stainless steel motor, roto shaft, and bolts and screws.
Threefold seal with interposed rings with oil pre-chamber.

CONSTRUCTION FEATURES OF THE MOTOR

Submersible type continuous duty asynchronous motor.
Stator enclosed in airtight stainless steel casing, with an outer cover that protects the wiring and the capacitor.
Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability.
Built-in thermal-amperometric protection and permanently connected capacitor.
